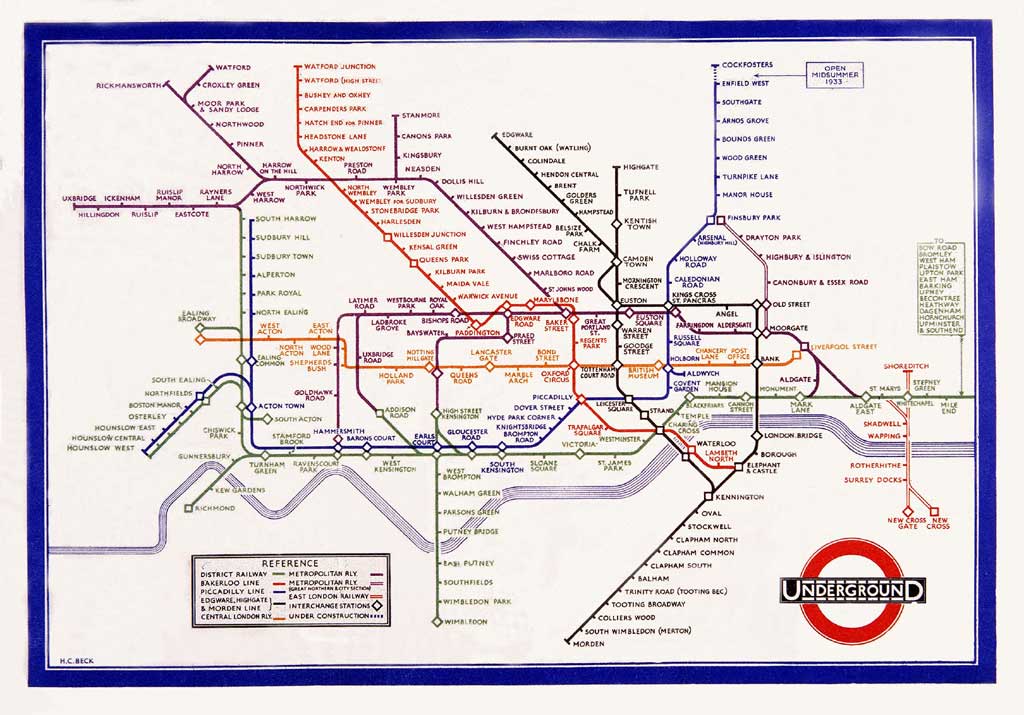

Harry Beck's 1933 London Underground diagram Harry Beck's 1933 Underground diagram. Public-domain UK Government artistic work; source: Wikimedia Commons.

Look at a London Underground map and London appears wonderfully orderly.

The coloured lines meet at neat angles. Stations wait at polite, almost even intervals. The crowded centre expands so that names and connections have room to breathe. The outer reaches of the network curl back towards the page instead of disappearing into the distance.

It is clear, memorable and extremely useful.

It is also geographically wrong.

Stations that are close together on the page may be much farther apart in the real city. Long suburban stretches are compressed. Central London is enlarged. Curves are straightened, distances are evened out and directions are tidied into horizontal, vertical and 45-degree lines. The River Thames survives as a recognisable geographical clue, but much of the city above the tunnels has been politely moved aside.

That is not a defect in the design. It is the central idea.

Harry Beck did not become one of the most influential information designers of the twentieth century by drawing London more accurately. He did it by recognising that accuracy comes in different forms. For a passenger standing in a station, the important truth is not the exact distance between two points. It is the order of the stations, the line to follow and the place to change.

The Tube map became better at answering those questions when it stopped trying to be an ordinary map.

Before Beck: when more London meant less clarity

London's underground railways did not begin as one tidy system. Different companies operated different routes and published maps of their own services. According to Transport for London's corporate archive, passengers received the first combined map of London's underground railways in 1906. Several competing companies participated, bringing routes that would later be associated with familiar lines such as the District, Piccadilly, Bakerloo, Central and Northern.

Combining the routes was useful, but it created a growing design problem.

A geographical map has to respect the city. Lines travel through real places, stations sit at real coordinates and distances vary. That works well when the reader needs to understand the land itself. It becomes more awkward when a transport network expands unevenly across a large area.

The central stations crowded together. Outer routes consumed large areas of the page. If the map preserved the true scale, the centre became difficult to read. If the centre was enlarged, the result was already a distortion. The map was caught between two purposes: showing London and explaining the railway.

By the 1920s, the geographical background had been removed, but the maps remained semi-geographical. TfL's archive says the travelling public continued to find the central area difficult to decipher because the designers were still concerned with geography and the distances between stations.

This is a common design trap. A piece of information can be accurate in the literal sense and still fail the person trying to use it.

Imagine a customer looking at a crowded price list, an event visitor facing a wall of small directional signs or a worker trying to identify the correct safety instruction at a glance. Every individual detail may be true. That does not mean the communication is working.

The problem is rarely that the designer has included nothing useful. The problem is that everything is competing to be useful at once.

The draughtsman who changed the question

Henry Charles Beck, known as Harry Beck, was an engineering draughtsman. In 1931 he produced a new sketch of the Underground network.

His decisive move was not a new colour or typeface. It was a change in the question being answered.

The old question was: Where are these railway lines in London?

Beck's question was: How are these stations connected?

TfL's archive describes him straightening lines, experimenting with diagonals and evening out distances. Unlike the mapmakers before him, he emphasised the connections in the network rather than its geography.

That distinction sounds obvious after ninety years of familiarity. At the time, it was radical.

A conventional map says that position and distance matter. Beck's diagram said that, for this particular journey, sequence and interchange matter more. Once that principle was accepted, the network could be reorganised visually around the passenger's decision.

Which line am I on?

How many stops remain?

Where must I change?

Which line should I follow next?

The city did not disappear. It became secondary to the task.

The rules that made the network readable

Beck's solution worked because it was not simplification by accident. It was a system.

1. Lines followed a restricted set of directions

Instead of tracing every bend in the railway, routes were drawn horizontally, vertically or diagonally. The Design Museum's history of London Transport explains that the course of each route was simplified into these controlled directions.

This reduced visual noise. A passenger no longer had to interpret a mass of irregular curves. The eye could follow a line through a predictable visual language.

2. The centre was enlarged

Geographically, many central London stations sit close together. On a small printed map, geographical fidelity would force their names and connections into a cramped knot.

Beck enlarged the centre for legibility. The map gave its most complicated area more space because that was where the reader needed more help.

This is an important design choice: equal physical space is not always equal useful space. Difficult information may deserve more room than simple information.

3. Stations were spaced more evenly

Real distances between stations vary considerably. Beck reduced that variation on the page. A short gap and a long gap could be drawn at similar lengths because the diagram was explaining order, not travel distance.

That choice makes the network easier to scan, but it also creates one of the map's main limitations. A passenger should not use it to judge whether two stations are close enough to walk between. The diagram is accurate for one purpose and unreliable for another.

Good design is often a controlled trade-off, not a perfect representation of everything.

4. Colours and interchange symbols carried meaning

Each route had a distinct colour, while interchange stations were made visually prominent. Early versions used diamond shapes for interchanges. The design allowed passengers to separate the network into routes and recognise the moments where a decision was required.

Colour was not decoration placed on top of the information. It was part of the information.

5. Most surface geography was removed

The Underground is largely experienced as a sequence of platforms, tunnels and connections. Beck understood that streets, districts and other surface details could distract from that sequence.

The map retained enough context to remain anchored to London, most notably the Thames, but it refused to become a small general-purpose street map.

That refusal gave it clarity.

Why the first rejection was understandable

Beck submitted his design to the Underground's publicity department. It was rejected.

TfL's research guide says the 45- and 90-degree angles were considered too revolutionary and potentially incomprehensible to the public. The Design Museum likewise records that the design was initially rejected before Beck resubmitted it and it was accepted.

It is tempting to tell this part of the story as a simple contest between a visionary designer and shortsighted officials. Reality is more useful than that.

The concern was not ridiculous. Beck was asking passengers to accept something that looked like a map while abandoning several habits associated with maps. Distances were no longer dependable. Directions were tidied. The city was distorted. A reader might reasonably misunderstand what the picture promised.

Every genuinely different design creates this risk. Familiar conventions may be inefficient, but they are familiar. Breaking them can improve the product while making the first encounter harder.

The question is whether the new system teaches itself quickly enough.

Beck's did.

Nearly a year after the initial rejection, the publicity team agreed to try the diagram. Beck made changes, and the map went into print. The Design Museum records that the 1933 pocket map had an initial print run of 750,000. TfL's archive says public demand led to large reprint orders and then to a poster version that also required unusually large print runs.

The design that officials feared might confuse the public proved easier for the public to use.

The cleverest part was not the drawing

The famous visual ingredients—angles, colours, even spacing—are easy to imitate. The deeper achievement was deciding which truth the map was responsible for.

Beck separated two kinds of accuracy:

Geographical accuracy: where things are and how far apart they sit in the physical city.
Topological accuracy: what connects to what, in which order, and where a traveller can change route.

For navigating an underground network, topological accuracy often wins.

This does not mean details never matter. It means details should earn their place by helping with the task. Beck did not make the map simpler merely because simplicity looked modern. He made it selective because selection improved decisions.

That is why the diagram has lasted. Its visual style is memorable, but its underlying idea is practical.

The same distinction appears in many everyday design jobs.

A sign at a junction does not need to describe the entire site. It needs to help a driver choose before passing the turn.

A menu does not need to explain the kitchen's internal process before a customer can choose a meal.

A website homepage does not need to give equal prominence to every fact the business knows. It needs to show a visitor where to start.

A garment-order form does not need every production detail. It needs the quantities, sizes, deadline, artwork and choices that move the order forward.

The designer's job is not always to add. Often, it is to decide what the reader can safely ignore for now.

What the Tube map gets wrong

A design classic should not be protected from criticism. Its compromises are part of the lesson.

The diagram can mislead people about distance. Stations that appear far apart may be walkably close. Outer London appears much nearer to the centre than a geographical map would suggest. Directions are approximate, not literal. The growing number of services can strain the clarity of the system that was created to simplify them.

These are not imaginary complaints. They are the cost of Beck's priorities.

The correct response is not to declare the diagram either perfect or fraudulent. It is to use the appropriate information tool. A passenger deciding where to change lines needs the network diagram. A person deciding whether to walk between two stations may need a street map. Someone planning an accessible journey requires additional step-free and service information. A real-time journey planner can account for disruption and timing in ways a printed diagram cannot.

One design does not have to perform every job.

Problems begin when a useful specialist tool is mistaken for a complete description of reality. That applies to maps, graphs, dashboards, price lists and websites alike.

A system strong enough to survive its creator

Beck continued refining the Underground diagram for decades. The Design Museum says he worked on it until 1959. TfL's archive records that his 1959 poster was his last published version and that he was later replaced by another designer. He tried to regain the role with a new design in 1964 but was not reinstated.

That difficult ending did not end the system.

Later designers added stations, extended lines and modified the diagram. The network kept changing, but Beck's organising idea remained recognisable. Since 2001, TfL maps have carried an acknowledgement that the design is an evolution of the original conceived by Harry Beck in 1931.

This is another mark of successful design: it can be extended by people who did not create it.

A fragile design works only while its original author is present to explain every decision. A system has rules strong enough to guide the next person.

London's transport network has grown far beyond the version Beck drew. TfL notes that the modern map continues to accommodate changes including the Elizabeth line and the naming of London Overground lines. Digital journey planners and the TfL Go app now sit beside the printed diagram, each handling tasks the original map was never asked to perform.

The map did not survive by remaining frozen. It survived by retaining its logic while allowing its content to change.

That echoes the story of NASA's “worm” logo: a visual system can disappear, return or evolve, yet remain powerful because people remember the organising idea behind it. Familiarity alone is not enough, but familiarity combined with usefulness can be remarkably durable.

How a travel tool became a symbol of London

The Underground diagram now does more than guide journeys.

It appears on posters, gifts, clothing and cultural projects. Artists have reinterpreted it. Other transport networks have borrowed its logic. The Design Museum describes its influence on underground maps from New York to Sydney. TfL calls it a symbol synonymous with London.

That cultural status can make the original achievement seem inevitable. It was not.

The diagram became iconic after proving useful. Its fame grew from repeated successful encounters: a confused passenger looks up, follows a colour, finds the correct interchange and reaches the destination. The identity was reinforced through service.

This matters because businesses often reverse the sequence. They try to make something look iconic before ensuring that it is clear. They chase distinctiveness without solving the customer's problem.

Beck's map is distinctive because its visual decisions come from the problem. The restricted angles are not a fashionable flourish. The expanded centre is not decorative drama. The colours are not a mood board. Each choice helps organise the network.

When form grows out of function, recognition has something solid to attach itself to.

The lesson is not “make everything minimal”

It would be easy to reduce the story to a slogan: simplify everything.

That would miss the point.

Removing information without understanding the task creates emptiness, not clarity. Beck could simplify geography because he understood the network. He knew which relationships had to remain exact. The order of stations could not be wrong. Interchanges could not be vague. Line identities could not drift. The diagram is selective, but it is not casual.

Useful simplicity usually rests on detailed understanding.

Before removing anything, ask:

What decision is the person trying to make?
Which information must remain exact for that decision?
Which details can be delayed, moved or shown elsewhere?
What visual rules will remain consistent throughout the system?
Where could simplification create a new misunderstanding?

Those questions are relevant far beyond maps.

On a directional sign, the answer may mean fewer destinations, larger lettering and a clearer arrow.

On a printed leaflet, it may mean putting the date, location and booking action before the background story.

On a workwear page, it may mean showing garments, decoration choices and quotation requirements before explaining machinery.

On a website, it may mean giving each page one clear purpose rather than asking the homepage to carry the entire business.

Clarity is not the absence of information. It is information arranged around a human need.

A map that tells the right kind of lie

The London Underground map lies about distance, direction and scale.

But it tells the truth about the journey.

That is why millions of people can use it without knowing Harry Beck's name. The diagram does not demand admiration before it becomes helpful. It earns admiration by becoming helpful.

Its enduring lesson is not that accuracy is unimportant. It is that designers must define accuracy properly. A map, sign, page or poster succeeds when it makes the necessary truth easy to find at the moment somebody needs it.

Beck looked at a tangled railway and realised that the city above it was not the main story. Connections were.

Once he changed the question, the answer became clear enough to last for generations.

What everyday map, sign or symbol would you immediately miss if somebody changed it tomorrow?
