A line of window lettering can look like one graphic when it is installed. Before installation, it may be dozens of separate pieces.
The dot over an “i” is its own shape. The centre of a letter may be surrounded by vinyl that has to be removed. A phone number contains individual digits and spaces that must remain consistent. A logo may contain several pieces that only make sense when their positions are preserved.
This is why cut vinyl lettering often arrives under a sheet of paper or clear film. That temporary layer is commonly called application tape, transfer tape, premask or prespacing tape. It is not an extra finish intended to stay on the window. Its job is to carry the prepared graphic as one organised unit.
Three layers, three different jobs
A prepared cut-vinyl graphic normally has three layers when it reaches the installation stage.
At the back is the liner. It protects the vinyl adhesive until the graphic is ready to be fitted.
In the middle are the letters, numbers or shapes that will remain on the window.
Across the face is the application tape. It temporarily holds all those separate pieces in the correct arrangement while the liner is removed and the graphic is positioned.
Avery Dennison’s application bulletin describes the tape as a means of transport that keeps plotter-cut text and logos in shape during application. 3M’s explanation of premask tape adds two other useful jobs: increasing stiffness and helping to protect the graphic from stretching or scratching while it is handled.
Think of the tape as a removable bridge. It connects all the loose parts long enough to move them together. Once the adhesive vinyl is correctly attached to the surface, the bridge can be removed.
Why the lettering is cut before it is carried
Cut lettering usually begins as a continuous sheet of coloured vinyl on a liner. A cutter follows vector paths around the required letters and shapes. The unwanted background is then removed in a process often called weeding.
What remains may be a business name, opening hours, a web address or a logo—but it is still sitting on the original liner. Without a carrier on top, each piece would have to be lifted and aligned separately.

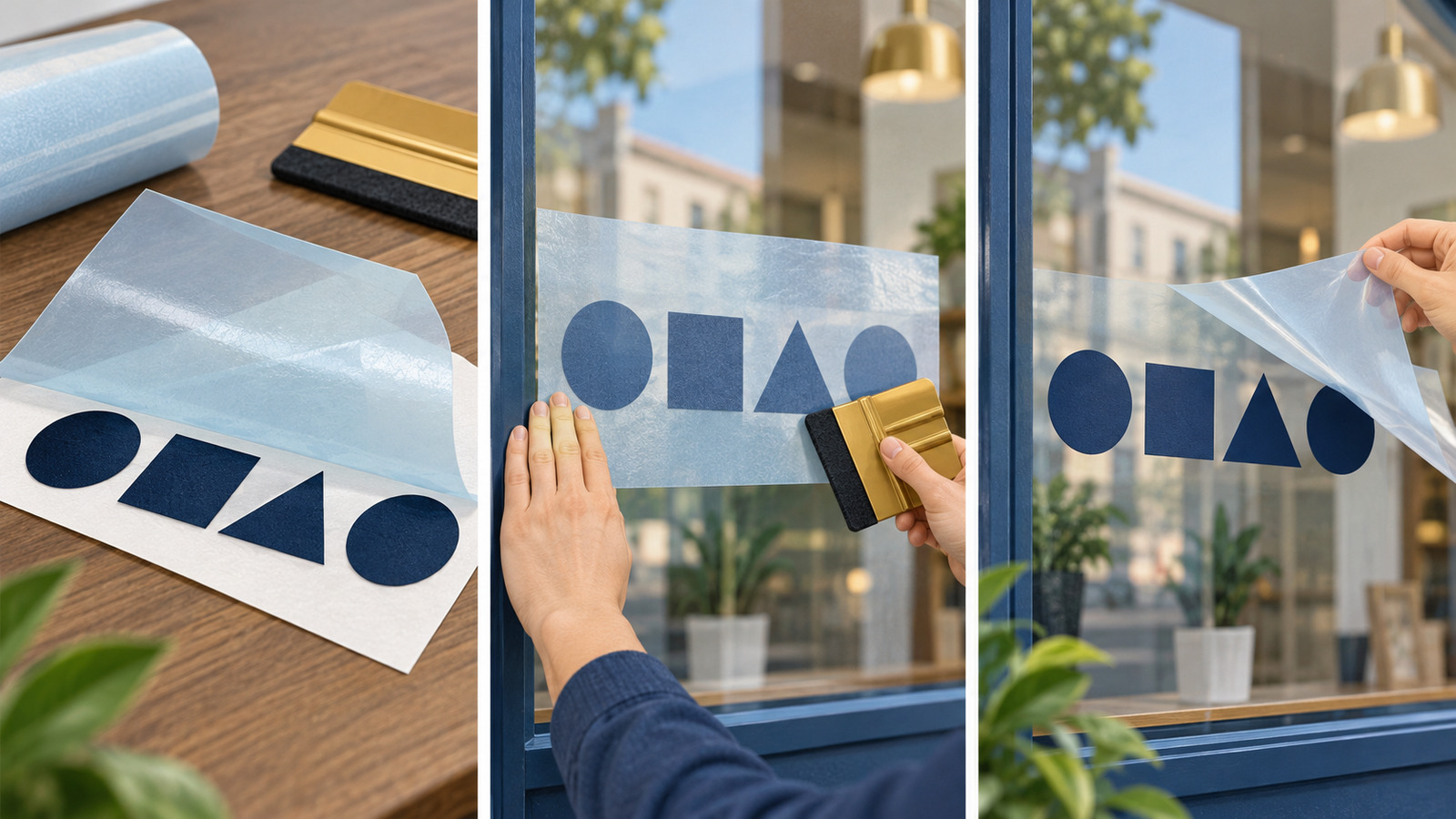

Application tape allows the complete arrangement to be picked up from the liner. The installer can position it, use a hinge or another suitable method, squeegee the vinyl onto the prepared surface and then peel away the temporary top layer.
Manufacturer instructions vary by film, tape, size and surface. Avery’s bulletin, for example, describes holding a graphic in position with a masking-tape hinge, removing the liner in a controlled way and applying with overlapping squeegee strokes. Those are manufacturer instructions for suitable materials—not a promise that every window, vinyl or installation should follow one identical procedure.
Why a printed sticker can look different

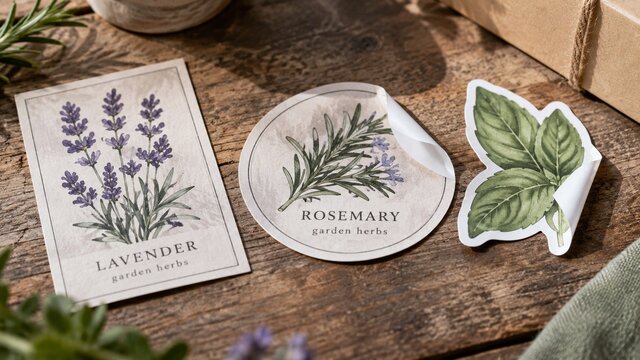

A printed sticker is organised differently. The colours, lettering and image may all be printed onto one continuous piece of adhesive material. A cutter can then follow the outside shape while leaving the sticker on its backing liner.
Roland DGA’s print-then-cut guide explains the basic workflow: print onto adhesive material, add a cut path around the artwork and contour-cut the shape. It also explains why printed colour may extend slightly beyond the cut line as bleed, preventing a white edge if cutting and printing differ by a small amount.
Because the printed design remains one piece, a small contour-cut sticker can often be peeled directly from its liner and applied without needing a carrier over the face. That is not a universal rule. Large printed graphics, intricate shapes, laminates and particular installation methods can still require application tape or another handling method.
The useful distinction is not “letters use tape and stickers never do”. It is this: separate pieces need their relationship preserved, while one-piece graphics may already preserve that relationship themselves.
The top sheet is supposed to come away
Customers sometimes see the application tape and assume the finished lettering will look cloudy or covered in paper. The tape is temporary.
During installation, pressure is used to bond the vinyl to the clean, suitable surface. The application tape is then pulled back, leaving the letters or shapes behind. If a small part tries to lift with the tape, it may need more pressure or a pause before the tape continues to come away. The correct response depends on the exact film, tape, surface and conditions.
Do not treat a fixed waiting time or peeling angle from one product bulletin as a universal instruction. Products differ. A cold window, textured surface, contamination, unsuitable paint or incompatible adhesive can change the job considerably.
What to send when asking about window graphics
The quickest way to choose between cut lettering, a printed sticker or another window-graphic approach is to show the actual job.
Send:
- a straight-on photograph of the window;
- approximate width and height;
- the wording, logo or artwork;
- whether the graphic will be viewed mainly from outside, inside or both;
- whether separate lettering or a full-colour image is expected;
- the required date; and
- whether supply only or fitting needs to be discussed.
Avoid measuring only the entire window if the graphic must fit within a particular pane, border or clear viewing area. Marking the intended position on a photograph is often more useful than a measurement without context.
Time for Designs can help narrow down the suitable format through its window graphics and vinyl-lettering service. Material, finish, production route and fitting are confirmed for the individual job before quotation; this article does not promise suitability, outdoor life or a particular installation method.
One finished message, even when it starts as separate pieces
The temporary tape is evidence of the problem being solved.
Cut lettering is made from separate shapes. The customer, however, needs one name, one number or one logo to appear in the correct position. Application tape keeps the pieces together just long enough for that finished message to transfer to the glass.
Once the graphic is secure, the carrier has done its work. What remains is the lettering—not the sheet that delivered it.
